我們不僅提供SKF BEAS030062-2RS軸承,還提供SKF品牌的其他品牌產品,以及SKF BEAS030062-2RS軸承的替換型號,萬千種型號,任您選擇。

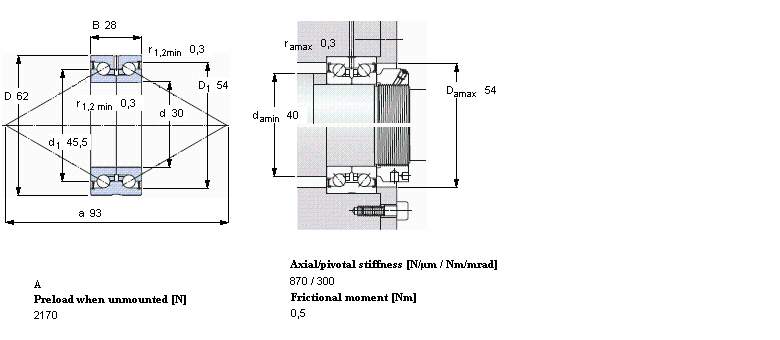

型號:BEAS030062-2RS
品牌:SKF
內徑:30
外徑:62
厚度:28
系列:角接觸推力球軸承 for screw drives, double direction
【更新日期:2016/8/3 電腦版 BEAS030062-2RS軸承】
| 角接觸推力球軸承 for screw drives, double direction | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 62 | 28 | 29 | 64 | 2,36 | 3200 | 0,39 | BEAS 030062-2RS | BEAS 30/63/C 7P60 | |
