FBSA207/QBC軸承
SKFSKF進口軸承經銷 磐固晟為用戶提供高品質的FBSA207/QBC軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF FBSA207/QBC軸承，確保您的不間斷生產。
型號：FBSA207/QBC
品牌：SKF
內徑：35
外徑：90
厚度：86
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【更新日期：2016/8/3 電腦版 FBSA207/QBC軸承】

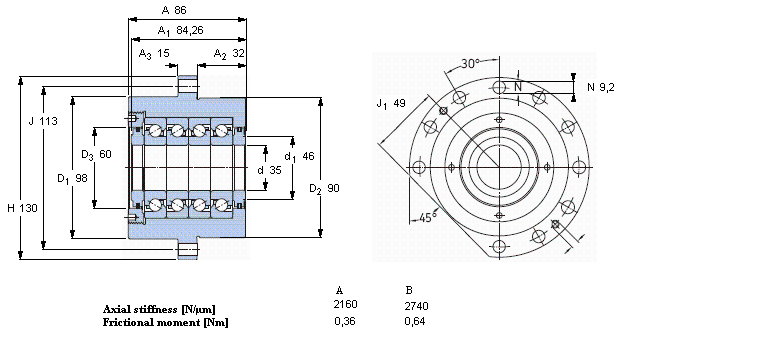

FBSA207/QBC軸承
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 86 | 59,495 | 196 | 7,3 | 3500 | 1750 | 4,6 | FBSA 207/ QBC | BSQU 235 TDT | |
