71917ACD/HCP4A軸承
SKF 71917ACD/HCP4A軸承是鼎力晟業長期代理的產品，鼎力晟業與SKF公司具有長期的71917ACD/HCP4A軸承采購計劃，可以為國內用戶提供足夠數量的SKF 71917ACD/HCP4A軸承，讓您的工廠無憂運轉。
型號：71917ACD/HCP4A
品牌：SKF
內徑：85
外徑：120
厚度：18
系列：角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
【
手機版 71917ACD/HCP4A軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

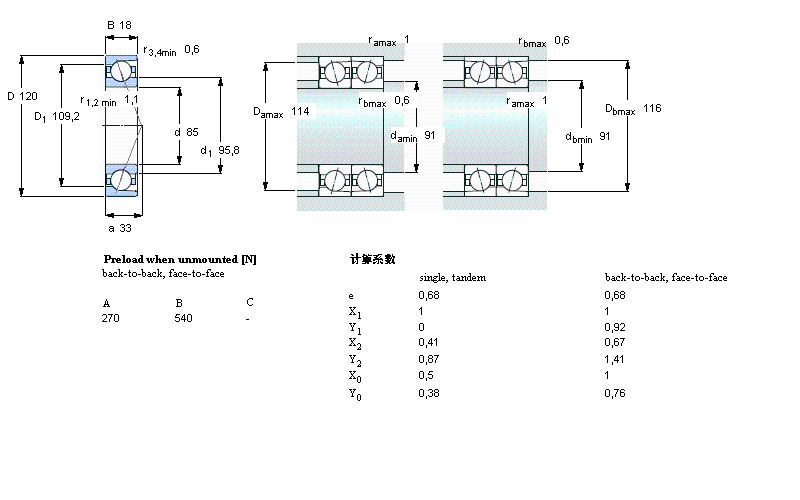

SKF 71917ACD/HCP4A尺寸圖紙
71917ACD/HCP4A軸承基本參數
| 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 85 | 120 | 18 | 43,6 | 45,5 | 1,93 | 11000 | 18000 | 0,44 | 71917 ACD/HCP4A | - | |
角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- 71910ACD/HCP4A軸承
- 50
- 72
- 12
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 7209ACD/HCP4A軸承
- 45
- 85
- 19
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 7018ACD/HCP4A軸承
- 90
- 140
- 24
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 71921ACD/HCP4A軸承
- 105
- 145
- 20
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 709ACD/HCP4A軸承
- 9
- 24
- 7
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 708ACD/HCP4A軸承
- 8
- 22
- 7
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 7000ACD/HCP4A軸承
- 10
- 26
- 8
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
- SKF
- 71900ACD/HCP4A軸承
- 10
- 22
- 6
- 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid
