S7008ACD/P4A軸承
SKF進口軸承代理鼎力晟業為用戶提供高品質的S7008ACD/P4A軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF S7008ACD/P4A軸承，確保您的不間斷生產。
型號：S7008ACD/P4A
品牌：SKF
內徑：40
外徑：68
厚度：15
系列：角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25°
【
手機版 S7008ACD/P4A軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

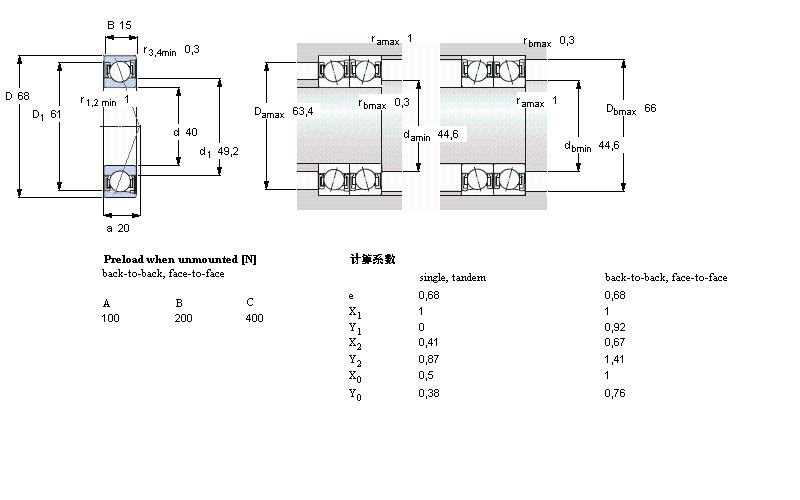

SKF S7008ACD/P4A尺寸圖紙
S7008ACD/P4A軸承基本參數
| 角接觸球軸承, 精密, S .. ACD, sealed, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 68 | 15 | 15,9 | 10,4 | 0,44 | 18000 | - | 0,19 | S7008 ACD/P4A | - | |
