鼎力晟業是SKF進口軸承代理商,不僅為工業配套用戶提供SKF 71924DB/P7軸承,在維修市場也提供足夠的支持,是SKF軸承在國內的優質經銷商之一,購買SKF 71924DB/P7軸承,鼎力晟業是您放心的選擇。
型號:71924DB/P7
品牌:SKF
內徑:120
外徑:165
厚度:22
系列:角接觸球軸承, 精密, DB, contact angle 25°
【
手機版 71924DB/P7軸承
點擊量
更新日期:2021/12/28
】
電話:020-36026999 傳真:020-36705678 服務熱線:18924187999 郵箱:sales@gzbearing.cn

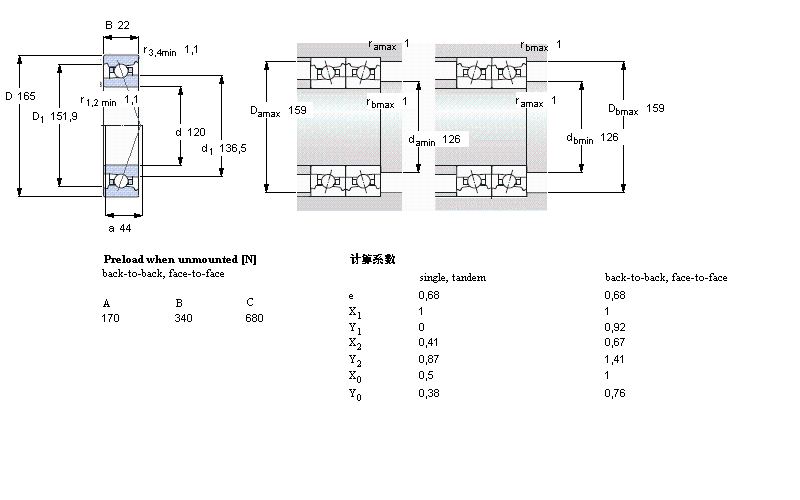

| 角接觸球軸承, 精密, DB, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 120 | 165 | 22 | 36,4 | 49 | 1,73 | 8500 | 13000 | 1,17 | 71924 DB/P7 | - | |
