BEAM017062-2Z/PE軸承
SKF BEAM017062-2Z/PE軸承工業配套用戶請注意：批量采購SKF BEAM017062-2Z/PE軸承，請至少提前一周與我們聯系，長期批量采購請?zhí)峁┠甓炔少?gòu)計劃，我們將十分感謝您的預見性，我們將提供極為優惠的價格以保障您的權益。
型號：BEAM017062-2Z/PE
品牌：SKF
內徑：17
外徑：62
厚度：25
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM017062-2Z/PE軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

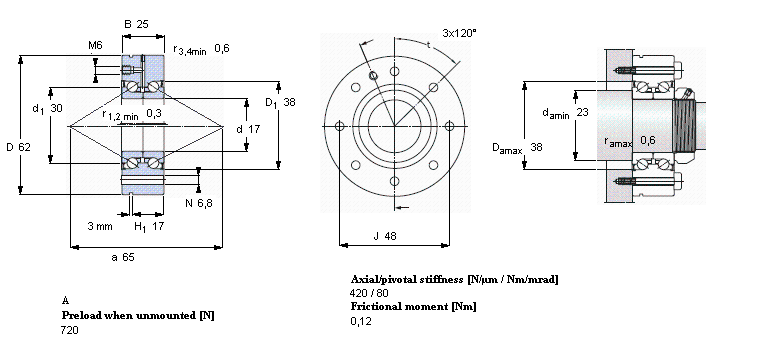

SKF BEAM017062-2Z/PE尺寸圖紙
BEAM017062-2Z/PE軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 17 | 62 | 25 | 19 | 31 | 1,16 | 6300 | 0,45 | BEAM 017062-2Z/PE | BEAM 17/62/Z SQP60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
