BSD45100CG軸承
購買SKF BSD45100CG軸承，及BSD45100CG軸承同系列產品，或者SKF公司其他產品，請聯系SKF進口軸承代理-鼎力晟業，我們提供準時高效的服務。
型號：BSD45100CG
品牌：SKF
內徑：45
外徑：100
厚度：20
系列：角接觸推力球軸承 for screw drives, single direction
【
手機版 BSD45100CG軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

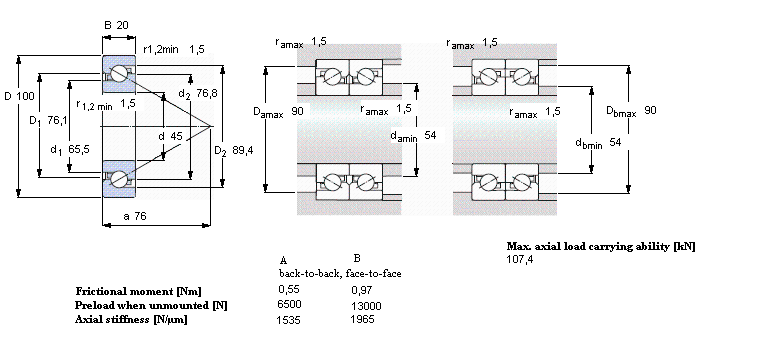

SKF BSD45100CG尺寸圖紙
BSD45100CG軸承基本參數
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 100 | 20 | 65,5 | 183 | 6,7 | 5600 | 6700 | 0,77 | BSD 45100 CG | BS 45/100 7P62U | |
角接觸推力球軸承 for screw drives, single direction
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BSA201CG軸承
- 12
- 32
- 10
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA202CG軸承
- 15
- 35
- 11
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA203CG軸承
- 17
- 40
- 12
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA204CG軸承
- 20
- 47
- 14
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2047CG軸承
- 20
- 47
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA205CG軸承
- 25
- 52
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSD2562CG軸承
- 25
- 62
- 15
- 角接觸推力球軸承 for screw drives, single direction
- SKF
- BSA305CG軸承
- 25
- 62
- 17
- 角接觸推力球軸承 for screw drives, single direction
相同內徑*外徑*厚度—45*100*20
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- BSD45100CG軸承
- 45
- 100
- 20
- 角接觸推力球軸承 for screw drives, single direction
- NSK
- 45TAC100B軸承
- 45
- 100
- 20
- 滾珠絲杠支撐軸承
- INA
- BSB045100-T軸承
- 45
- 100
- 20
- 推力角接觸球軸承
- FAG
- BSB045100-T軸承
- 45
- 100
- 20
- 推力角接觸球軸承
