型號:S71922ACD/HCP4A
品牌:SKF
內徑:110
外徑:150
厚度:20
系列:角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid
【
手機版 S71922ACD/HCP4A軸承
點擊量
更新日期:2021/12/28
】
電話:020-36026999 傳真:020-36705678 服務熱線:18924187999 郵箱:sales@gzbearing.cn

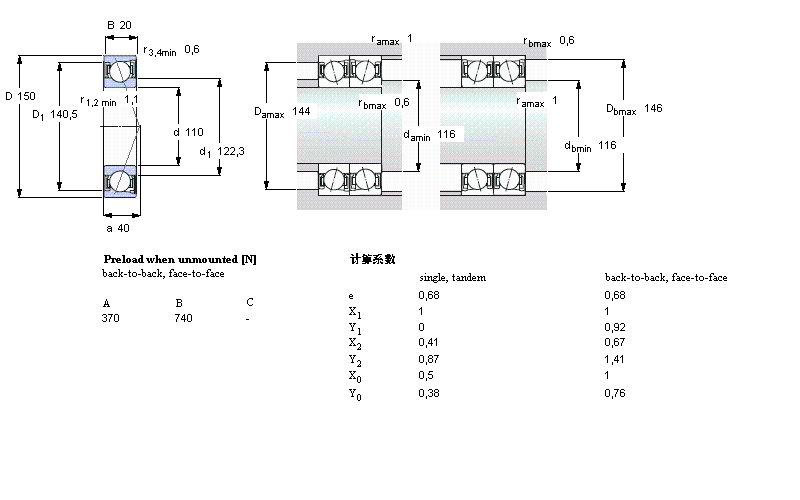

| 角接觸球軸承, 精密, S .. ACD/HC, sealed, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 150 | 20 | 58,5 | 68 | 2,55 | 8500 | - | 0,72 | S71922 ACD/HCP4A | - | |
