FBSA204/QBC軸承
作為傳統的進口軸承代理商，鼎力晟業以廣州為基地，全方位展開與SKF公司的合作，為本地SKF FBSA204/QBC軸承提供強大的貨源支持，并迅速推廣到全國各地，經過多年的努力，F(xiàn)BSA204/QBC軸承已成為我們的主導產品之一。
型號：FBSA204/QBC
品牌：SKF
內徑：20
外徑：60
厚度：77
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA204/QBC軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

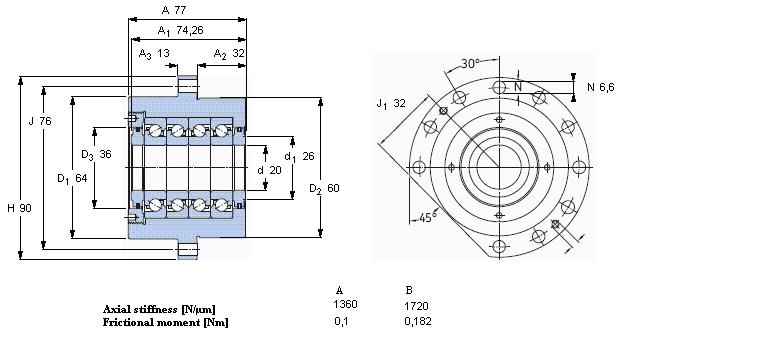

SKF FBSA204/QBC尺寸圖紙
FBSA204/QBC軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 60 | 77 | 35,86 | 98 | 3,6 | 4750 | 2375 | 1,7 | FBSA 204/ QBC | BSQU 220 TDT | |
