FBSA204/QFC軸承

訂購SKF FBSA204/QFC軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF FBSA204/QFC軸承。

型號：FBSA204/QFC 品牌：SKF 內徑：20 外徑：60 厚度：77 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【手機版 FBSA204/QFC軸承點擊量更新日期：2021/12/28 】

電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

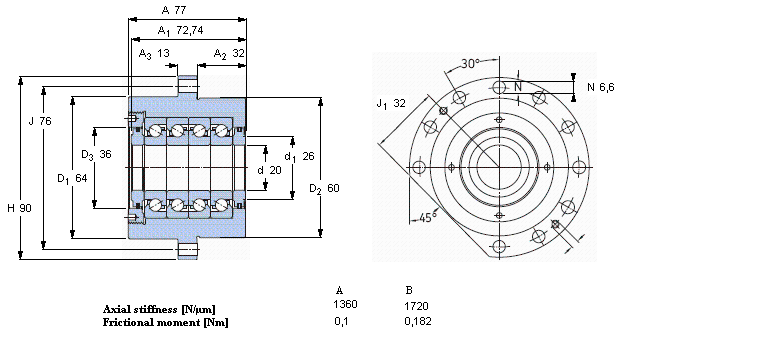

SKF FBSA204/QFC尺寸圖紙

FBSA204/QFC軸承基本參數


角接觸推力球軸承 for screw drives, cartridge units with flanged housing
							公差, inner rings, outer rings, see also text
							Preload, see specific bearing, see also text
							Shaft fits, housing fits
							軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		預壓			SKF	SNFA
						A	B
d	D₂	A	C	C₀	P_u

mm			kN		kN	r/min		kg	-

20	60	77	35,86	98	3,6	4750	2375	1,7	FBSA 204/ QFC	BSQU 220 TFT

角接觸推力球軸承 for screw drives, cartridge units with flanged housing

品牌
型號
內徑
外徑
厚度
系列
SKF
FBSA204/DB軸承
20
60
47
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA204/DF軸承
20
60
47
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA204/QBC軸承
20
60
77
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA204/QFC軸承
20
60
77
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA205/DB軸承
25
80
52
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA205/DF軸承
25
80
52
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA205/QBC軸承
25
80
82
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA205/QFC軸承
25
80
82
角接觸推力球軸承 for screw drives, cartridge units with flanged housing

相同內徑外徑厚度—206077

品牌
型號
內徑
外徑
厚度
系列
SKF
FBSA204/QBC軸承
20
60
77
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
SKF
FBSA204/QFC軸承
20
60
77
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
