FBSA205/DB軸承
SKF FBSA205/DB軸承是鼎力晟業長期代理的產品，鼎力晟業與SKF公司具有長期的FBSA205/DB軸承采購計劃，可以為國內用戶提供足夠數量的SKF FBSA205/DB軸承，讓您的工廠無憂運轉。
型號：FBSA205/DB
品牌：SKF
內徑：25
外徑：80
厚度：52
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA205/DB軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

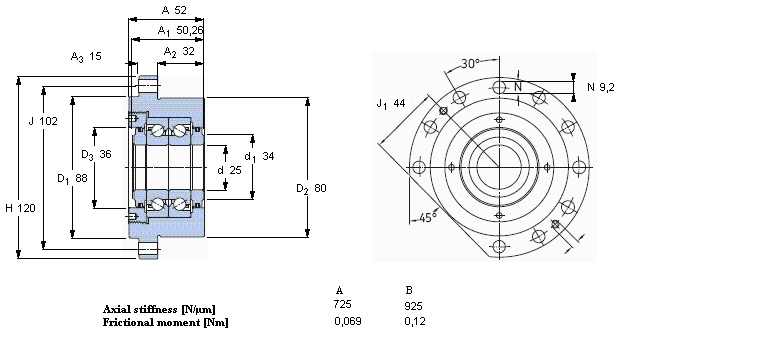

SKF FBSA205/DB尺寸圖紙
FBSA205/DB軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 80 | 52 | 22,4 | 52 | 1,93 | 7200 | 3600 | 2,3 | FBSA 205/ DB | BSDU 225 DD | |
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- FBSA204/DB軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/DF軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QBC軸承
- 20
- 60
- 77
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QFC軸承
- 20
- 60
- 77
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DB軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DF軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QBC軸承
- 25
- 80
- 82
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QFC軸承
- 25
- 80
- 82
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
相同內徑*外徑*厚度—25*80*52
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- FBSA205/DB軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DF軸承
- 25
- 80
- 52
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
