FBSA207/DF軸承
SKF FBSA207/DF軸承工業配套用戶請注意：批量采購SKF FBSA207/DF軸承，請至少提前一周與我們聯系，長期批量采購請?zhí)峁┠甓炔少?gòu)計劃，我們將十分感謝您的預見性，我們將提供極為優惠的價格以保障您的權益。
型號：FBSA207/DF
品牌：SKF
內徑：35
外徑：90
厚度：52
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA207/DF軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

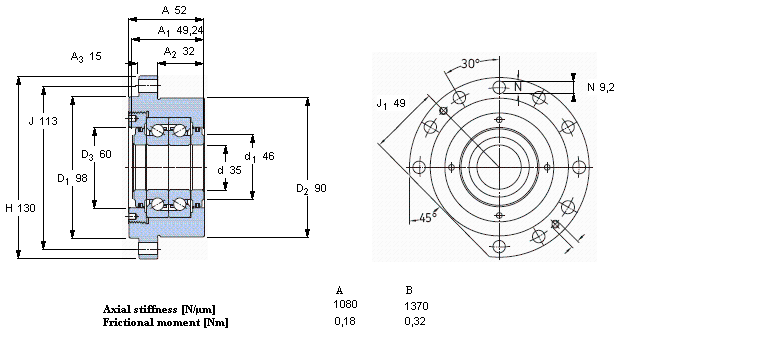

SKF FBSA207/DF尺寸圖紙
FBSA207/DF軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DF | BSDU 235 FF | |
角接觸推力球軸承 for screw drives, cartridge units with flanged housing
