FBSA209/QFC軸承
我們不僅提供SKF FBSA209/QFC軸承，還提供SKF品牌的其他品牌產品，以及SKF FBSA209/QFC軸承的替換型號，萬千種型號，任您選擇。
型號：FBSA209/QFC
品牌：SKF
內徑：45
外徑：124
厚度：106
系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
【
手機版 FBSA209/QFC軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

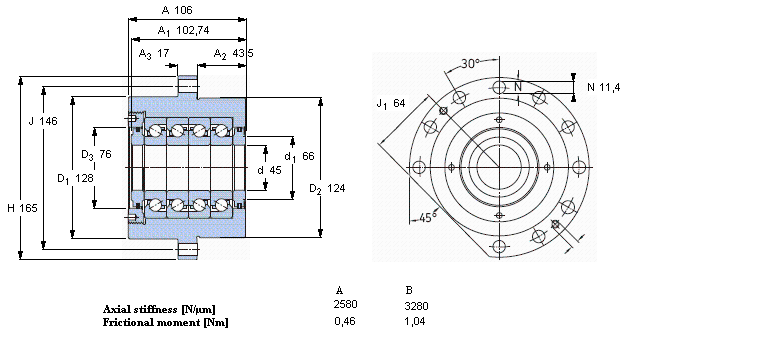

SKF FBSA209/QFC尺寸圖紙
FBSA209/QFC軸承基本參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 124 | 106 | 73,35 | 268 | 9,8 | 3150 | 1575 | 9,4 | FBSA 209/ QFC | BSQU 245 TFT | |
